Tube Forming / Bending Capabilities

TUBE FORMING / BENDING CAPABILITIES

Tube Forming / Bending Capabilities


Tube Forming & Tube Processing Capabilities
PARTIAL LIST

TUBE “BENDING“

  • BEND / FORM SMALL DIAMETERS STARTING AT 1/16″ OUTSIDE DIAMETER.
  • CAPABLEOF TIGHT RADIUS BENDING, DOWN TO “1D” BENDS (1 TUBE DIAMETER BENDS).

TUBE “POST-BENDING AND ASSEMBLY“

  • APPLICATION / INSTALLATION OF MECHANICAL
  • BRAZED, SWAGED
  • WELDED FITTINGS
  • PLATING
  • SPECIAL COATINGS
  • SPECIAL CLEANING
  • PART IDENTIFICATION
  • KITTING WITH OTHER COMPONENTS
  • TESTING
  • CUSTOM LABELING
  • BAR-CODING
TUBE “END FINISHING TYPES“

  • SWAGING
  • BEADING
  • FLANGING
  • SINGLE FLARING
  • DOUBLE FLARING
  • EXPANDING
  • SQUARING
  • CUTTING
  • FACING
  • REDUCING
  • WELDING
  • NOTCHING
TUBE “END TERMINATION FITTINGS“

  • PERMASWAGE
  • CRYOGENIC
  • COMPRESSION
  • FLARED
  • BRAZED
  • AND WELDED FITTINGS
TUBE ASSEMBLY “SPECIAL PROCESSES”

  • TUBE ASSEMBLY LEAK TESTING.
  • LOW / MEDIUM PRESSURE PROOF TESTING USING AIR MEDIA.

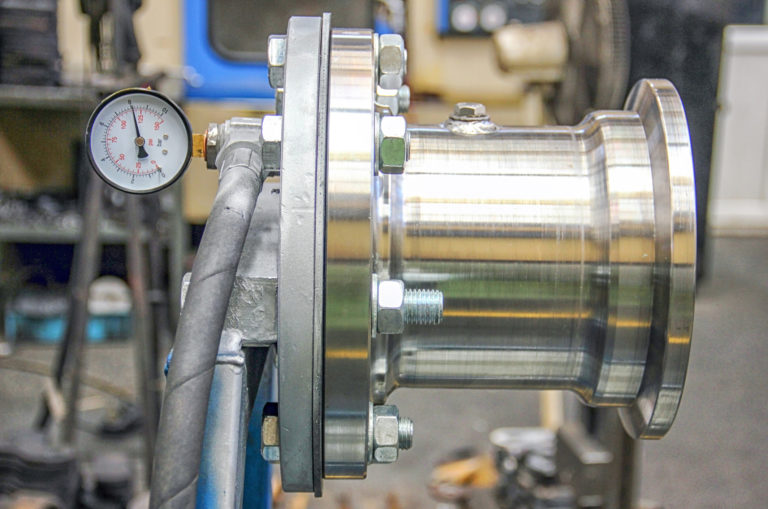

  • HIGH PRESSURE PROOF AND BURST TESTING USING HYDROSTATIC MEDIA.
  • FUSION WELDING – NADCAP ACCREDITED WELDING

TUBE ASSEMBLY “INSPECTION“

  • TUBE INSPECTION USING LASER VECTOR MEASUREMENT ANALYZER.
  • ENGINEERING DATA TYPES: “LRA”, “XYZ”, “CAD/DXF/CATIA/IGES” OR “PAPER” DATA.
